iECHO PRO SERIES
Digital Cutting Systems
THE DIGITAL CUTTING EXPERT BY YOUR SIDE
Since it was founded in 1994, iECHO has been focused on providing more intelligent and efficient production and processing platforms for Post-Processing industries.
iECHO’s new integrated high-speed digital cutting system combines high performance with high speed and high quality. Equipped with modularized cutting tools, iECHO cutting systems satisfy customers unique cutting requirements.
Includes integrated through-cutting, half-cutting, milling, creasing and marking in one machine. iECHO helps customers complete innovative, unique and high-quality products quickly and accurately in limited time and space; effectively enhancing your competitiveness.
01: Energy-Saving Vacuum Pump with Frequency Converter
With frequency converter, the vacuum power adjusts according to different materials and uses low energy consumption.
03: Regional Vacuum Suction
The vacuum suction area can b selected according to the size of the materials, improving the suction effect.
05: Complete Cutting Tools
iECHO cutting systems have a complete set of cutting tools for materials (Paper, Vinyl, KT Board, Corrugated board, Foam, PVC, Acrylic, etc.) The cutting tools support through-cutting, half-cutting, V-cutting, engraving, creasing, marking, etc.
07: Convenient Data Management
The Barcode system can retrieve corresponding cutting files automatically, simplifying the operation process.
02: Safety Device
Equipped with infrared automatic sensor device, the Safety Device provides a safe working environment.
04: Automatic Knife Initialization
Equipped with infrared automatic sensor device, the Safety Device provides a safe working environment.
06: Comfortable Operating Platform
All the operations are completed by one PC, no touch-screen required.
08: Accurate and Stable Working Table
The cutting table is built with aviation aluminium which contains a honeycomb structure inside; sturdy, high-precision, stable for long-term running.
High-precision automatic positioning system

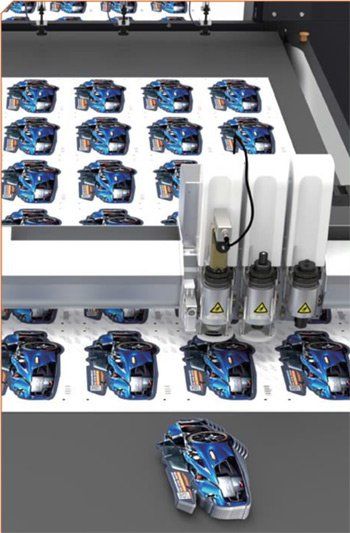

With the high-definition CCD camera, locating and contour cutting can be available to various materials automatically and precisely. This solves the problems of manual positioning and printing distortion so as to easily achieve a precise cutting result. iECHO’s diversified positioning mode meets different cutting requirements for different materials with the guaranty of high precision contour cutting.
- Dot/cross contour-cutting flexible with multiple ways for positioning and high precision
- Back-side contour-cutting meets the requirements for processing different materials, effectively avoiding over-cutting
- Large format contour-cutting large format materials can be processed with high efficiency and precision by cooperation of the automatic conveyor system
- Edge-scanning contour-cutting scanning materials edges for positioning

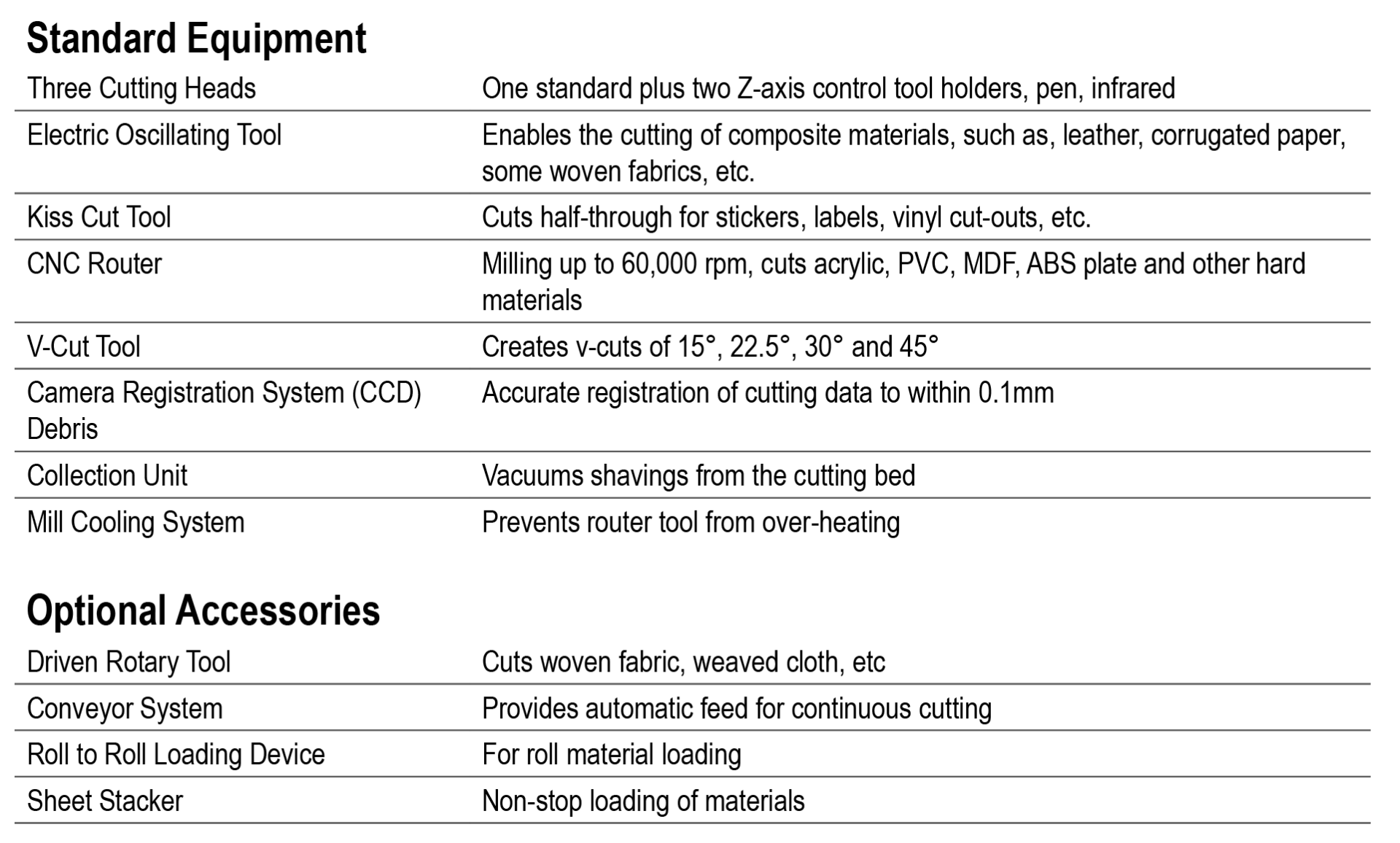

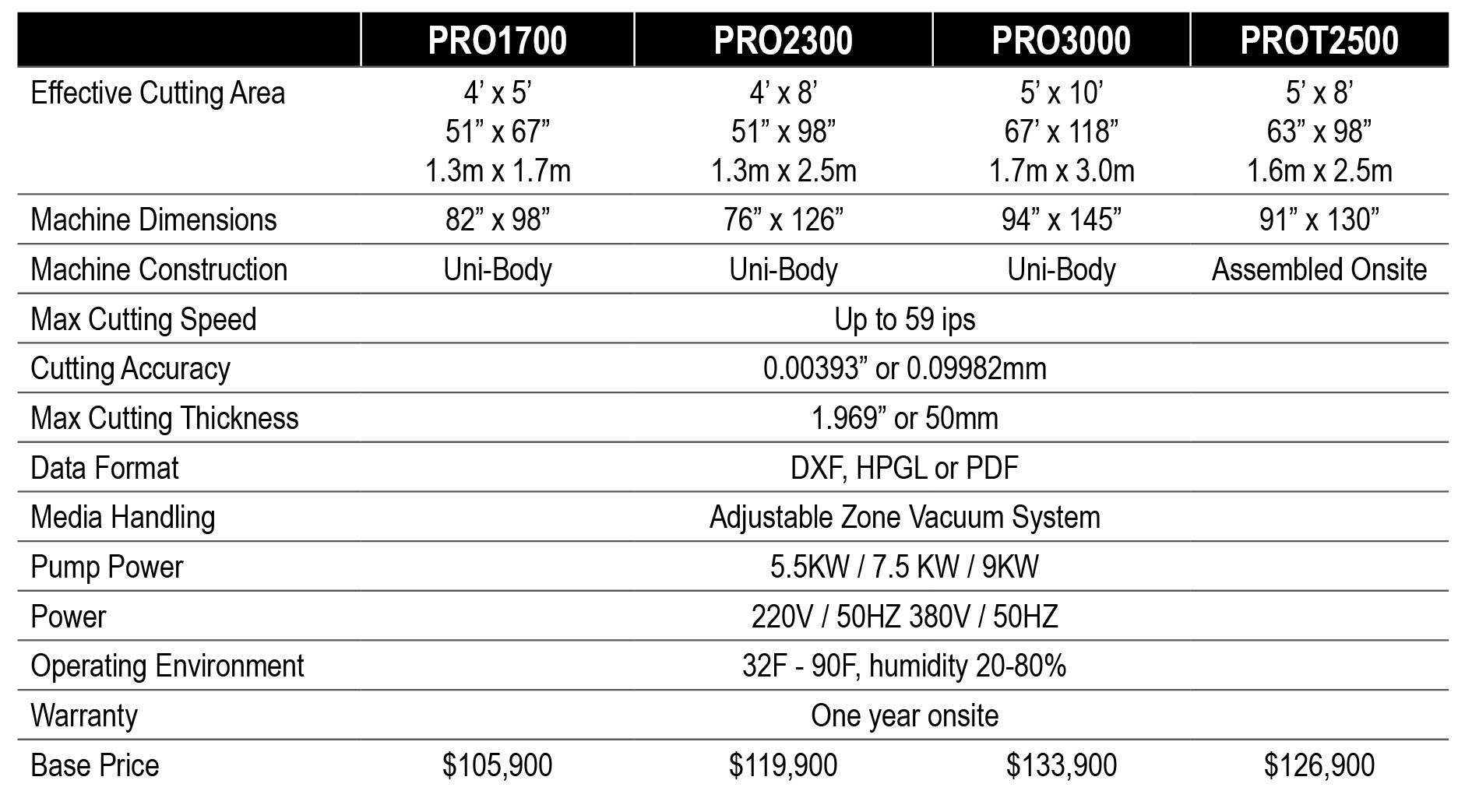

SPECIFICATIONS
