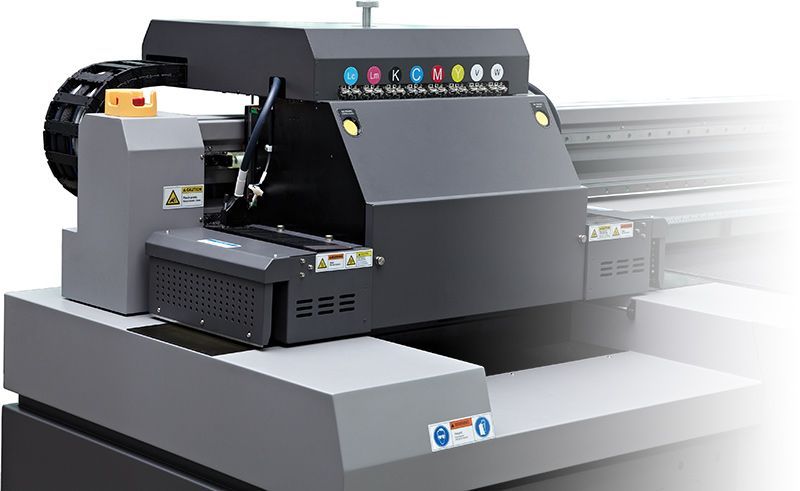

Wide Format UV Inkjet Printers
Fluid Color offers a full line of state-of-the-art wide format printers including flatbed, hybrid, and roll-to-roll models in various sizes ideal for wall graphics, billboards, banners and phone cases. Ranging from 1200 to 3600 dots per inch on Ricoh, Gen6 or Kyocera printheads, these printers are sure to capture every fine detail on either flexible or rigid substrates.
High Speed UV Inkjet Printers
Introducing the Z98H Turbo, a fully automated high-speed wide format printer now available from Fluid Color with Kyocera KJ4A printheads and the ability to print up to 3600 dots per inch. Ideal for flexible, rigid or rolls substrates, the Z98H Turbo is capable of printing at speeds up to 3500 square feet per hour.
Corrugated Inkjet Printers
Now available from Fluid Color are single pass and scanning digital corrugated inkjet printers for your packaging needs. Ideal for yellow, white, coated and craft substrates, Fluid Color’s new line of industrial-grade corrugated printers takes wide format printing to a whole new level.
Wide Format UV Inkjet Printers

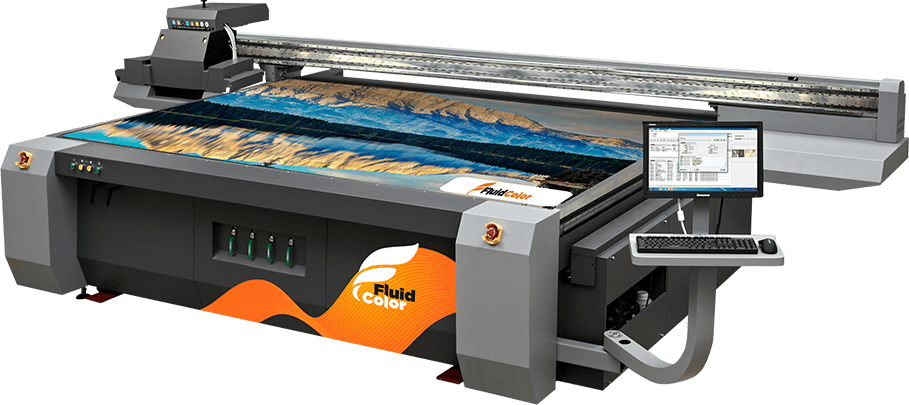

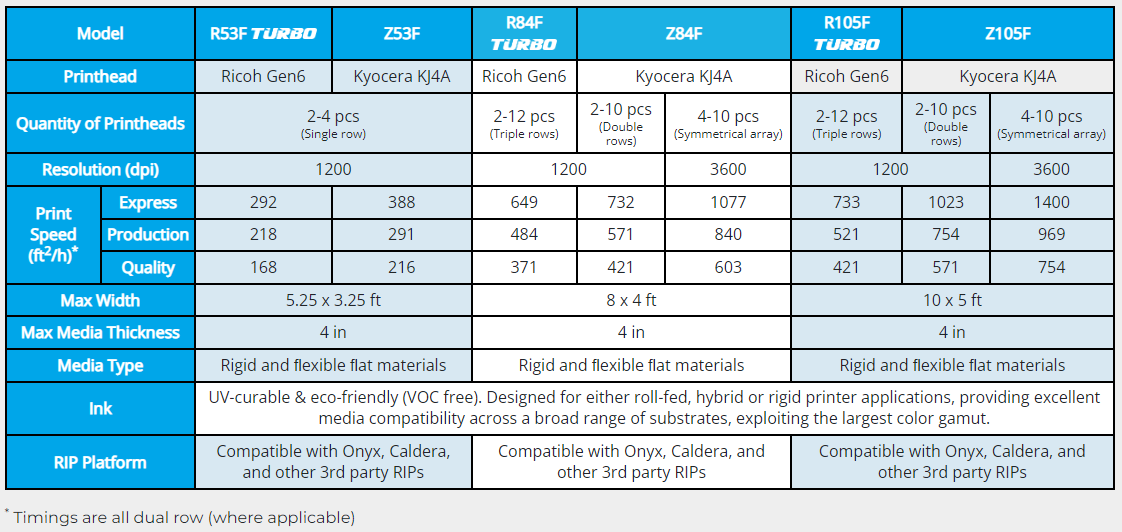

RF / ZF Flatbed Series
Applications: Ceramic Tile, Wall Graphics, Metal, Acrylic, Phone Cases, Glass and MDF
Ricoh Gen6 Print Heads (Dual channel heads)
R53F Turbo / R84F Turbo / R105F Turbo
Featuring variable dots, true gray scale imaging 5, 10 and 15pl
- Up to 748 ft²/hr
- Up to 23 boards/hr
- Up to 4" thick media
- Sizes: 5' x 3.25', 8' x 4' & 10' x 6.5'
- 4 vacuum zones
- Pin registration system
- LED curing standard
- Linear motor, magnetic rail system (optional)
Kyocera Print Heads (Dual channel heads)
Z53F / Z84F / Z105F
Featuring variable dots, true gray scale imaging 4, 6 and 10pl at true native dpi
- FASTEST FLATBED IN ITS SEGMENT
- Up to 2689 ft²/hr
- Up to 60+ boards/hr
- Up to 4" thick media
- Sizes: 5' x 3.25', 8' x 4' & 10' x 6.5'
- 4 vacuum zones
- Pin registration system
- LED curing standard
- Linear motor, magnetic rail system (optional for 84 and 105)

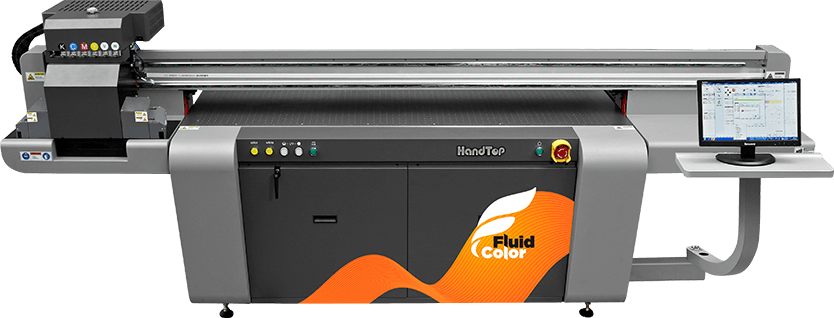

R53F /Z53F

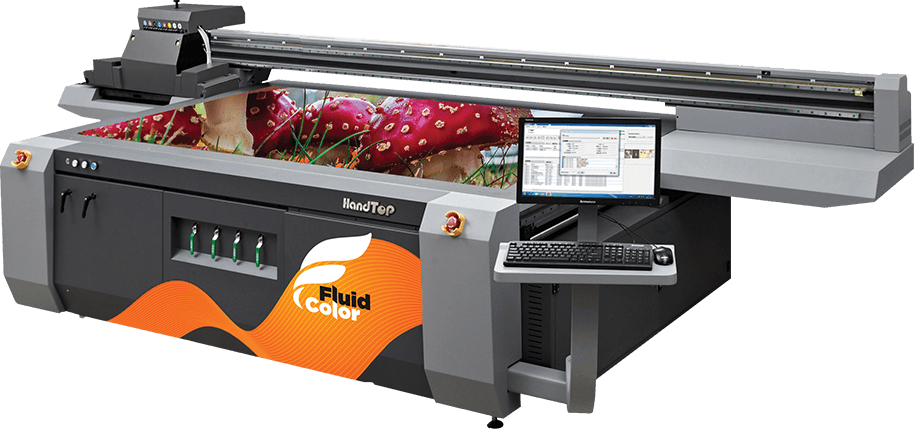

R84F /Z84F
R105F /Z105F

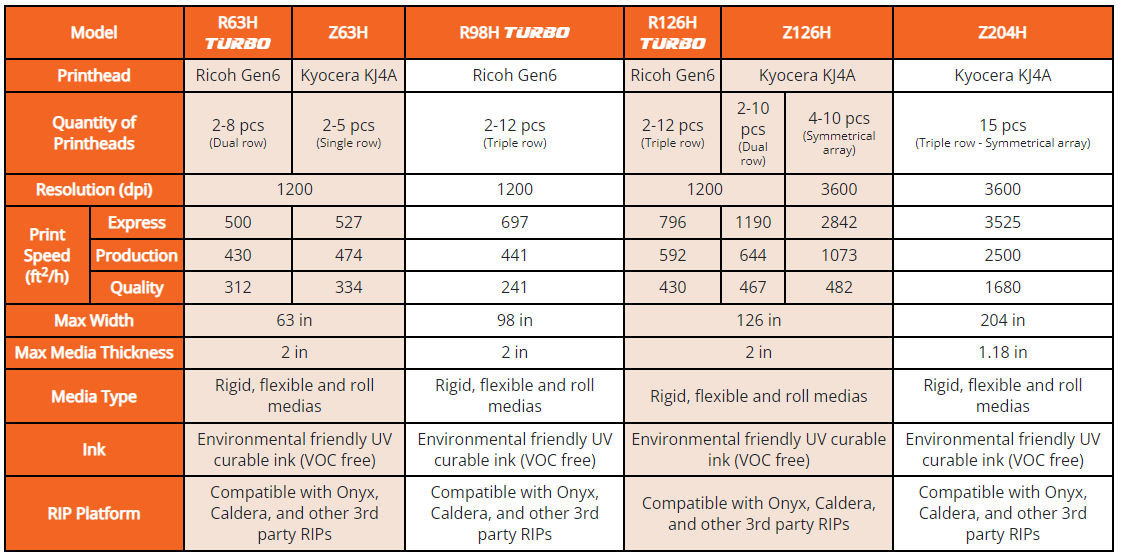

RH / ZH Hybrid Series
Applications: Billboard or Banner, Backlit Fabric/Light Box, PVC Soft Film, Backlit Film, Non-woven Fabrics, Rigid
Ricoh Gen6 Print Heads (Dual channel heads)
R63H / R98H / R126H
Featuring variable dots, true gray scale imaging 5, 10 and 15pl
- Up to 796 ft²/hr
- Up to 2" thick media
- Sizes: 63", 98" & 126"
- 4 vacuum zones
- Retractable registration bar
- Linear motor, magnetic rail system option not available (available for R126H Turbo)
- LED curing standard
- Up to 3 rows and 12 heads
Kyocera Print Heads (Dual channel heads)
Z63H / Z126H / Z204H
Featuring variable dots, true gray scale imaging
4, 6 and 10pl at true native dpi
- Fastest Hybrids in their segments
- Up to 3525 ft²/hr
- Up to 2" thick media
- Sizes: 63", 126" & 204"
- 4 vacuum zones
- Retractable registration bar
- Linear motor, magnetic rail system (optional for Z126H*, standard for Z204H)

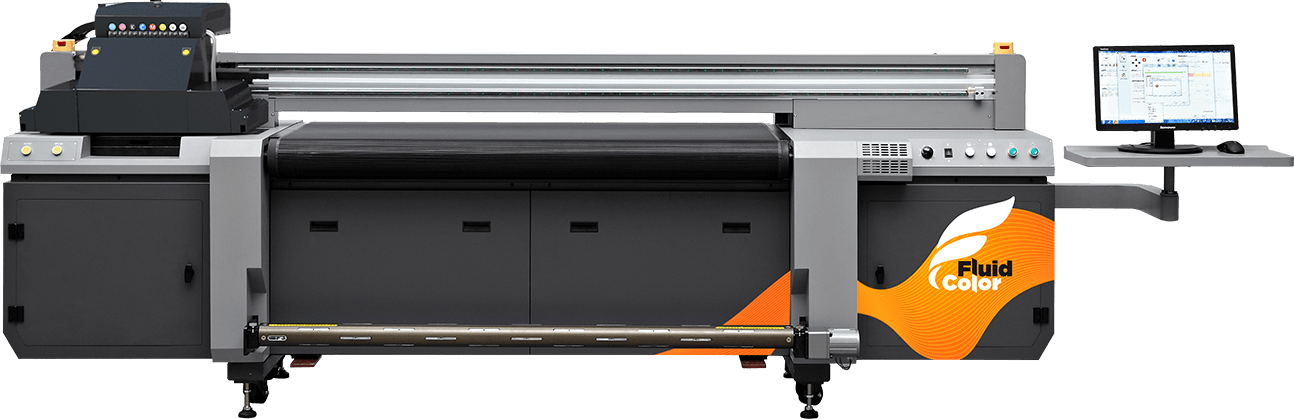

R63H / Z63H

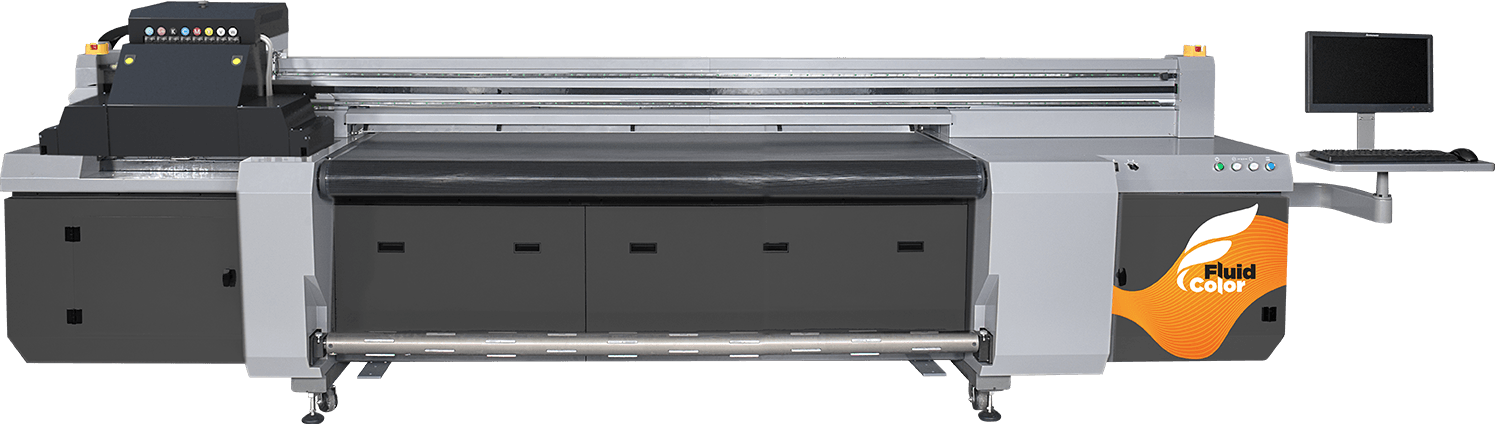

R98H

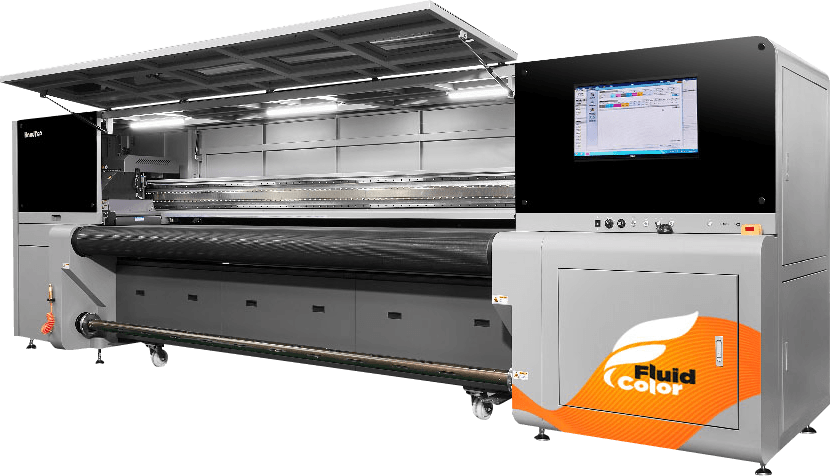

R126H / Z126H

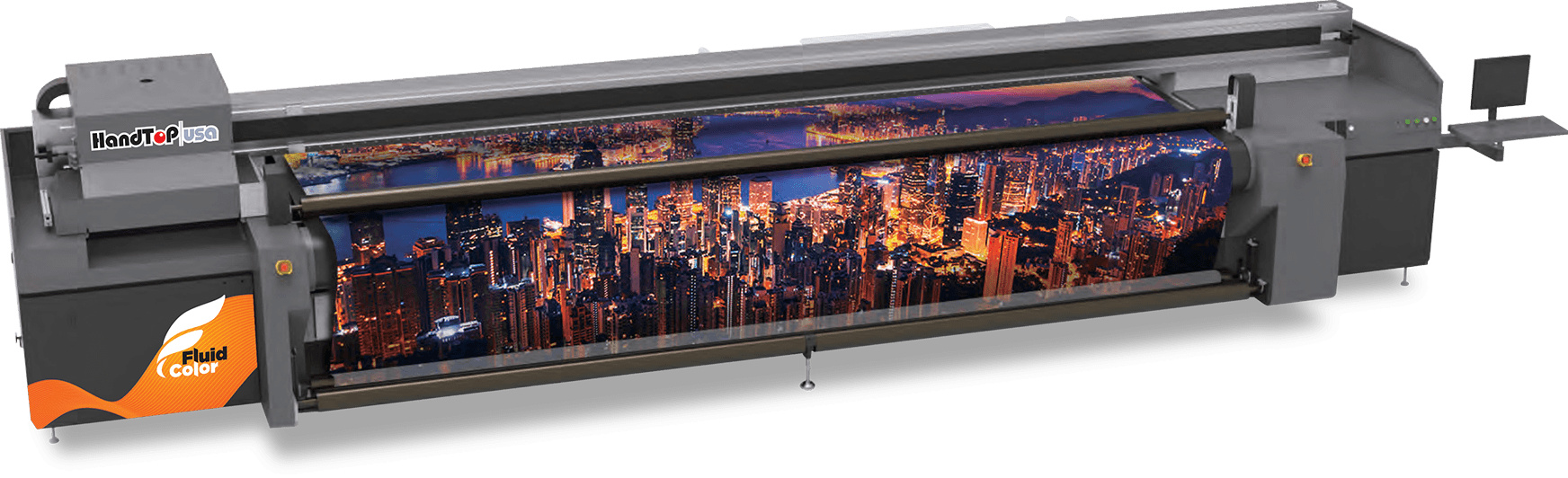

Z204H

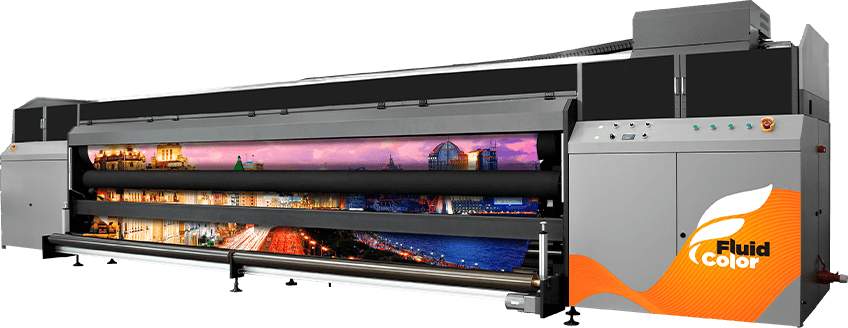

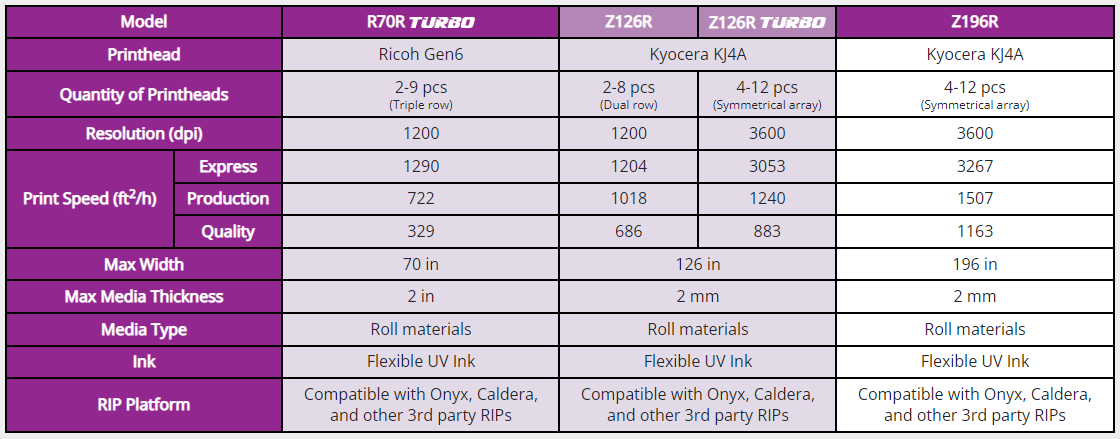

ZR Roll to Roll Series
Applications: Billboards, Banners, Backlit Displays, Window Clings
Ricoh Gen6 Print Heads (Dual channel heads)

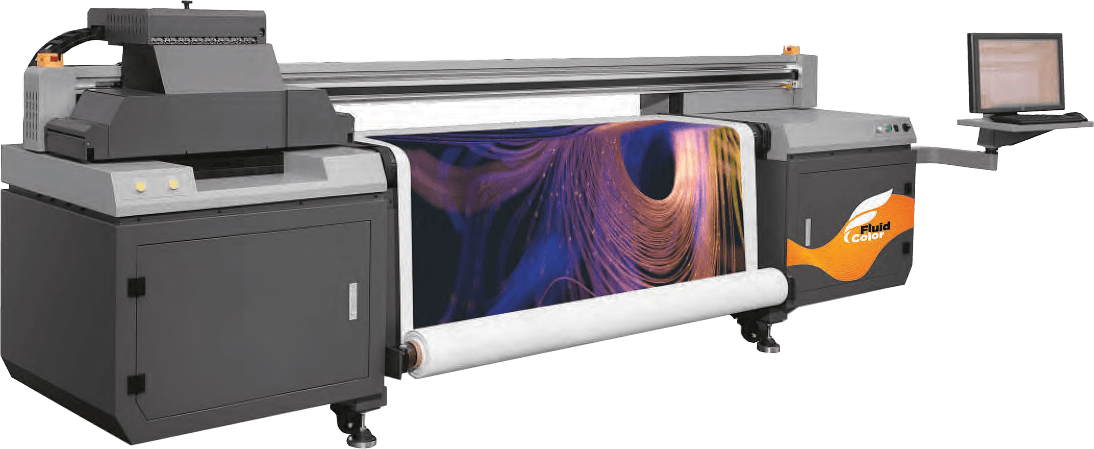

R70R
- 2 year warranty
- Robust, Industrial Design
- Up to 9, Ricoh Gen 6 print heads
- Maximum media thickness of 2 inches
- Water cooled LED curing technology
- High power, multi-zone vacuum system
- Automatic media thickness measuring
Kyocera Print Heads (Dual channel heads)
Z126R / Z196R
Featuring variable dots, true gray scale imaging 4, 6 and 10 pl
- MOST ECONOMICAL ROLL-TO-ROLL IN ITS SEGMENT
- Z126R up to 937 ft²/hr
- Z126R Turbo up to 1680 ft²/hr
- Z196R up to 2067 ft²/hr
- Up to 2mm thick media
- Sizes: 126" (3.2 meters) & 196" (5 meters)
- Mesh kits for printing on liner-less mesh media
- Linear motor, magnetic rail system (optional)

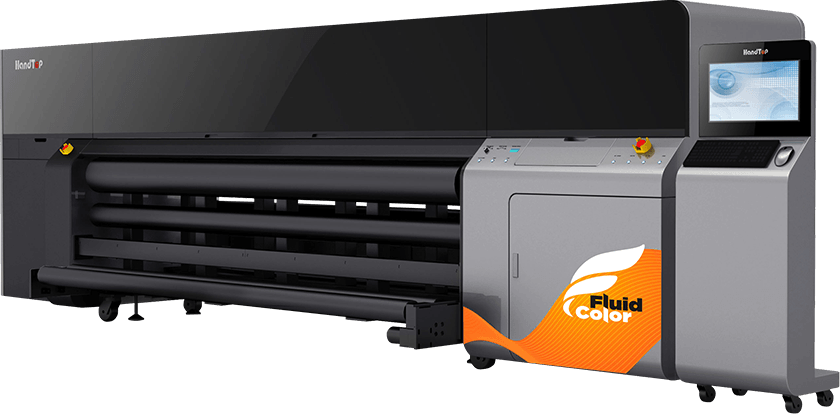

Z126R
Z196R
Z196R

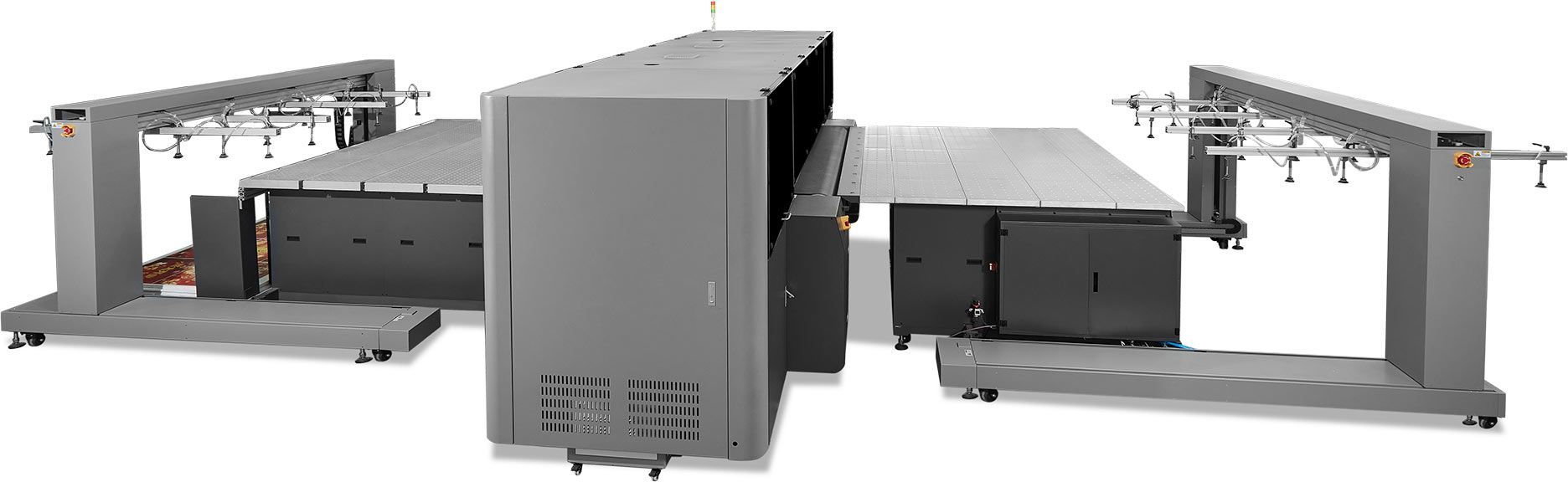

High Speed UV Inkjet Printer

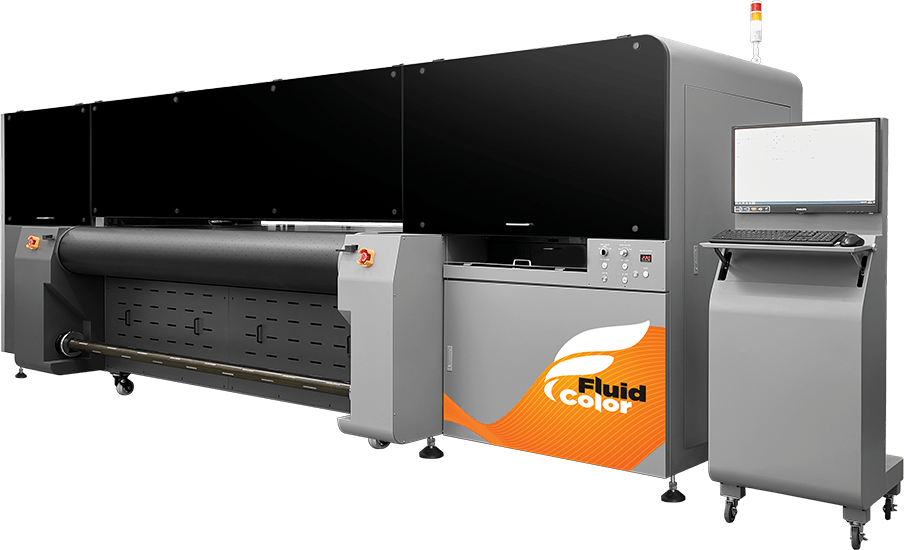

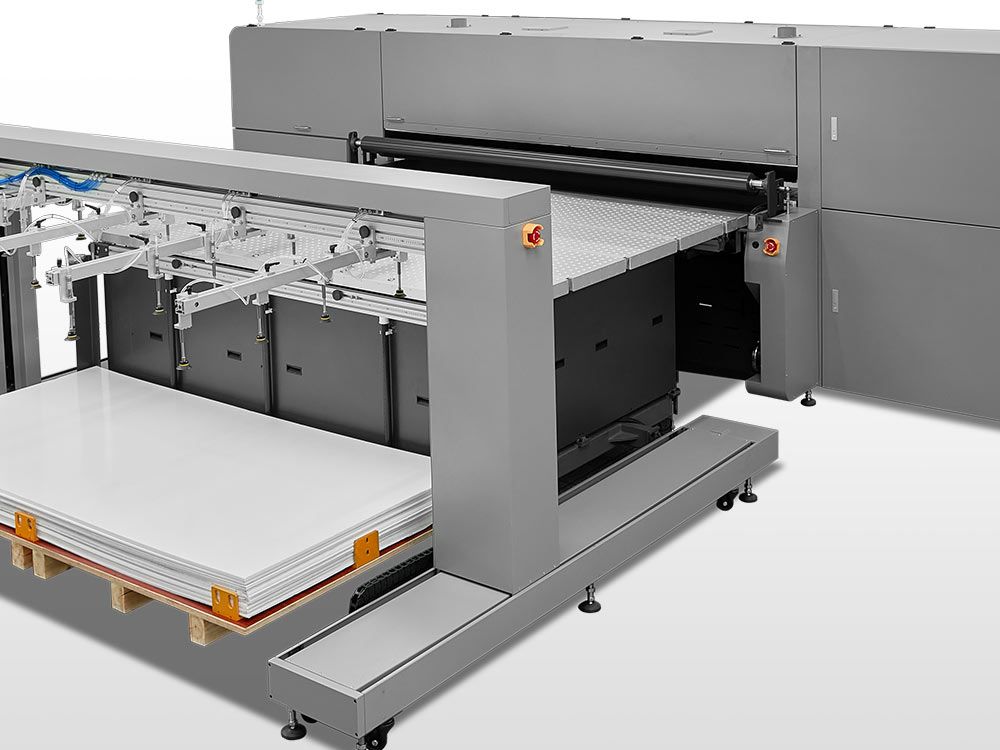

Z98H Turbo with Full Automation
The Z98H is fastest in its class
All Fluid Colour Z98H Turbo Printers have the following specifications:

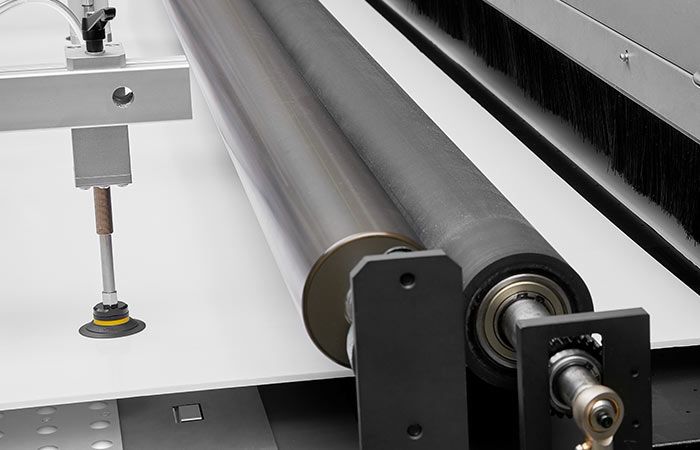

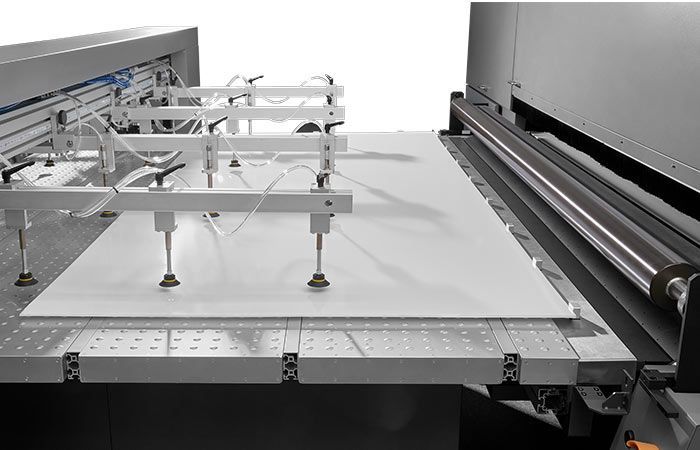

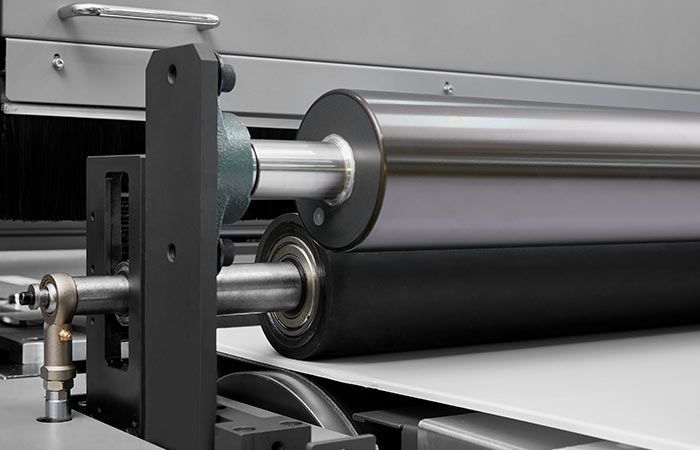

- Optional Auto Loader
- Optional Auto Stacker
- Kyocera printheads
- Print Speeds over 100, 4x8’ boards/hr
- Triple Row printhead confi guration
- Maximum substrate thickness of 2 inches
- CMYK Ink Sets with White option
- Robust Industrial Design
- Linear Motor driven Carriage Rail for high print speeds
- Water-cooled, LED curing technology
- Easy to use TopJet Print Controller

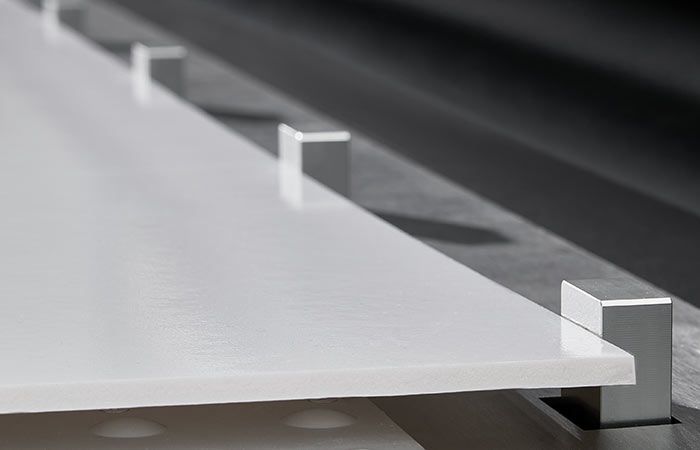

- Simple Registration System for media positioning
- Automatically controlled vacuum zones to maximize substrate hold down power
- Silencers on the powerful vacuum pumps to reduce noise

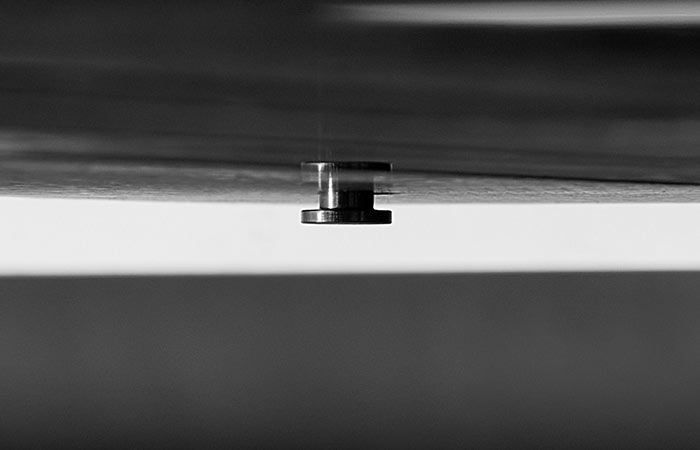

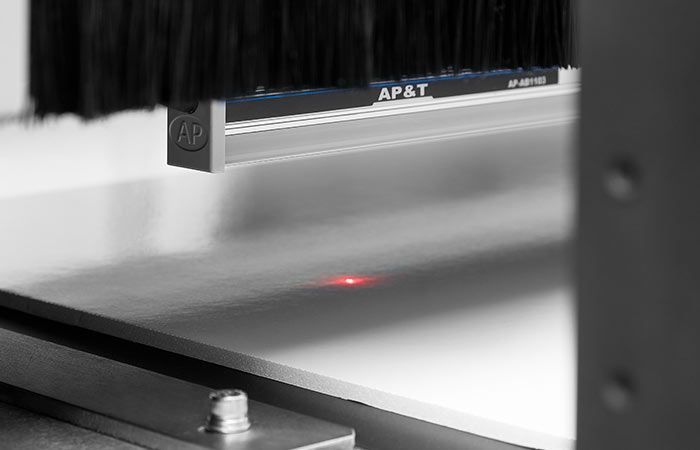

- Automatic Media Thickness measuring
- Automatic cycle printing to maximize throughput
- White Ink Recirculation system to maintain pigment dispersion

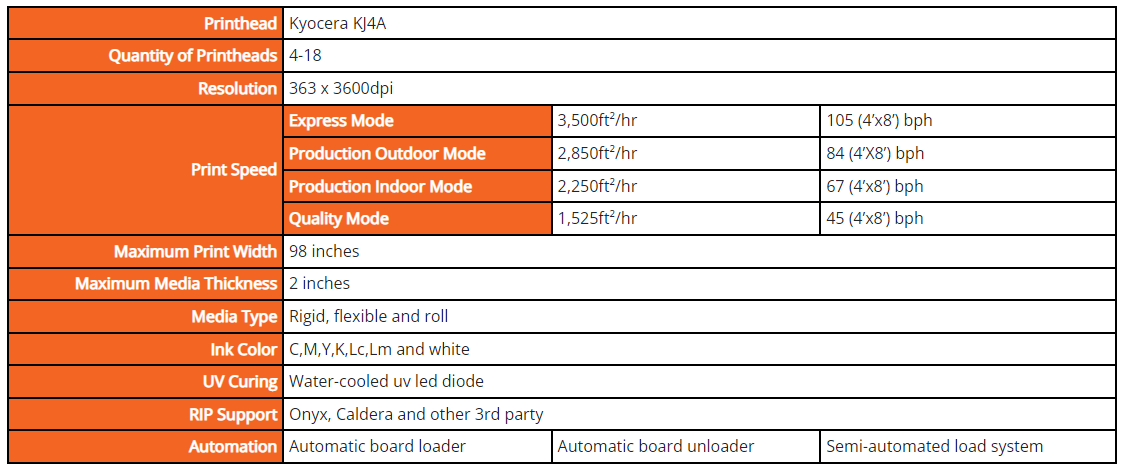

Specifications
Corrugated Inkjet Printers
Now available from Fluid Color are single pass and scanning digital corrugated inkjet printers for your packaging needs. Ideal for yellow, white, coated and craft substrates, Fluid Color’s new line of industrial-grade corrugated printers takes wide format printing to a whole new level.

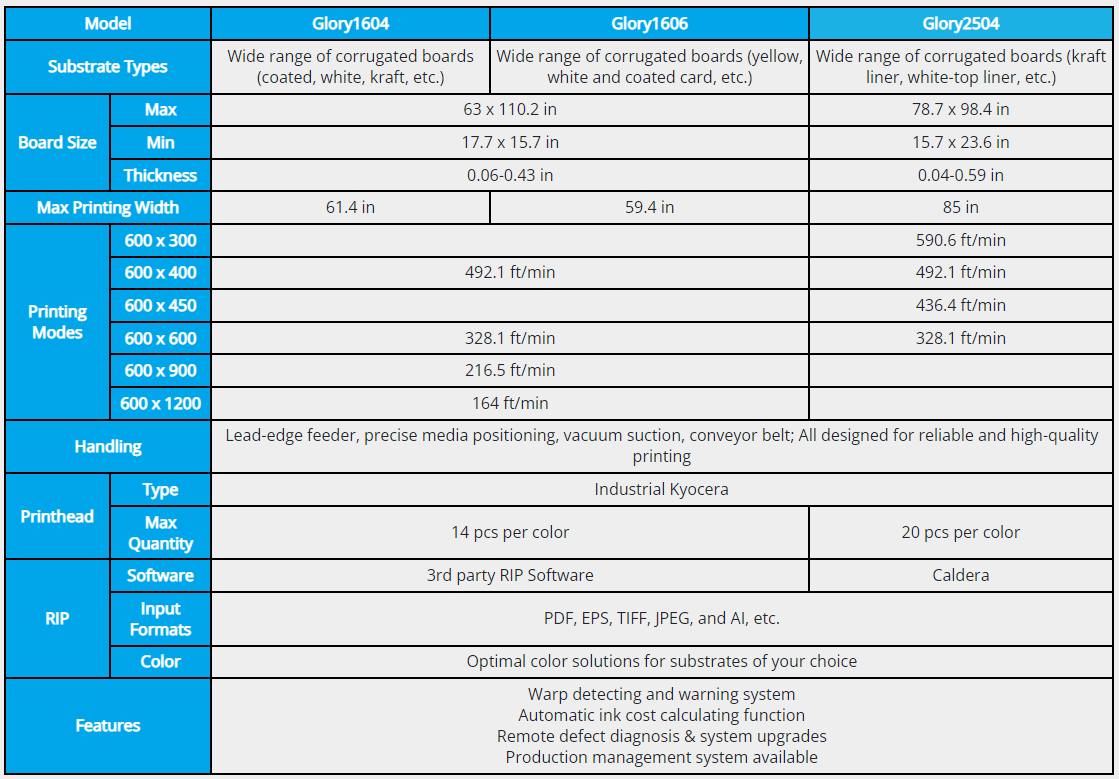

Single Pass Corrugated Inkjet Printers

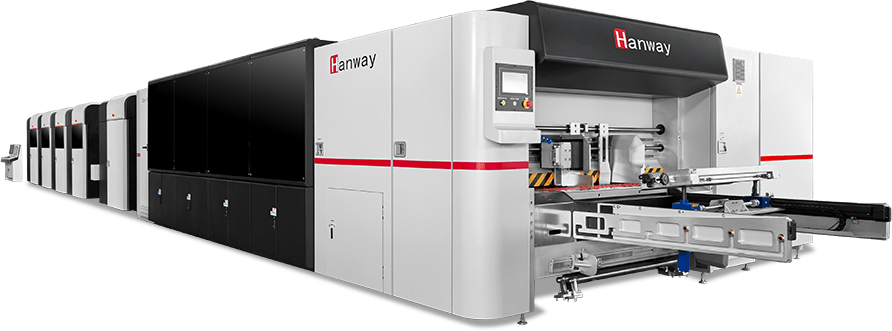

Glory1604/1606
- Single Pass technology brings revolutionary productivity and image quality
- Printing speed is up to 150m/min, and printing resolution is up to 600*1200dpi
- Can be upgraded to 6-color printing with “C/M/Y/K +2 colors” according to customer needs
Glory2504
- Industrial large-format design with the maximum print width of 2,160mm
- Higher productivity with the speed up to 17,773m²/hr
- End-to-end workflow integration of board printing, slotting and stacking
Digital Corrugated Inkjet Printers

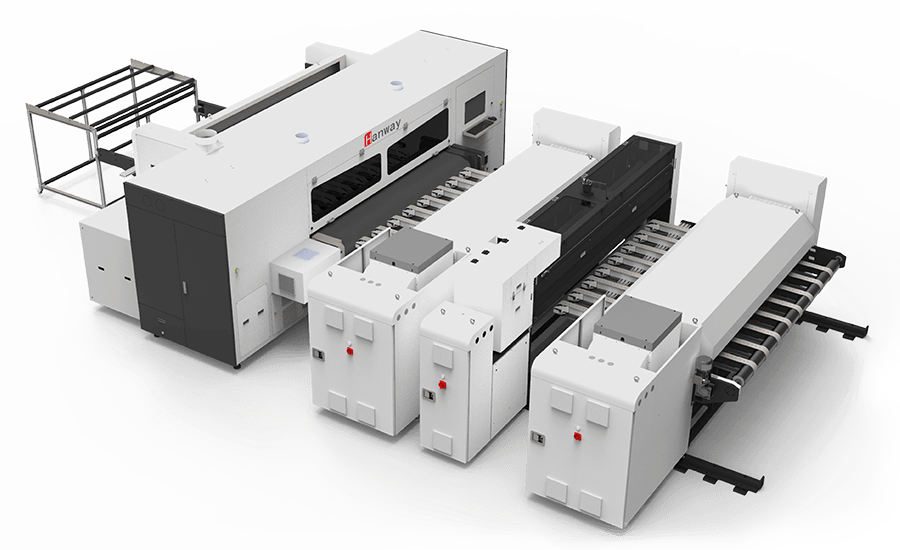

Highjet 2500D
- More stable and efficient: max productivity up to 800m2/hr
- More exquisite and broader: color variable data printing, coated and uncoated board printing for extensive applications
- Customized and personalized: flexible combination of different units helps to develop personalized packaging

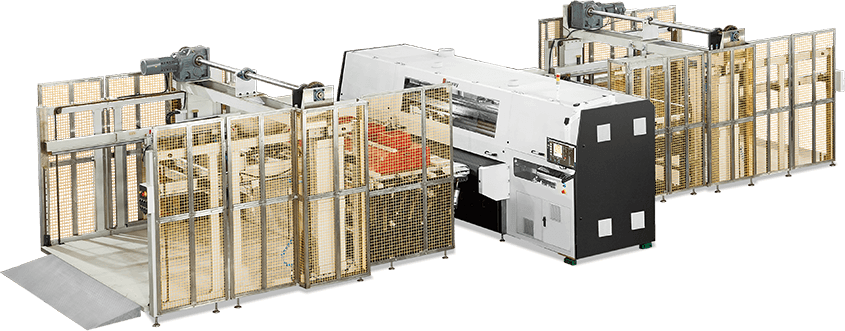

Revo2500W / Revo2500W Pro
- Combination of printing,slotting, varnish, drying and stacking
- Revo 2500W can be equipped with post-printing devices including slotting, drying or varnish
- Modularized and automatic production with high efficiency and labor saving
