AFR-24S
The AFR provides auto cutting and creasing function in sheet feed cutter to simplify your operation through an automatic working procedure in custom products such as package, labels, transfer decals in short-term run.
Creased Ability
Equipped with the dual tool holders with creasing tool and blade, AFR offers cardstock creasing and cutting to make small volume of paper box.
PS. It’s suggested that the cardstock weight range is 200 to 350 gsm, and the weight will vary with the type and thickness of paper.

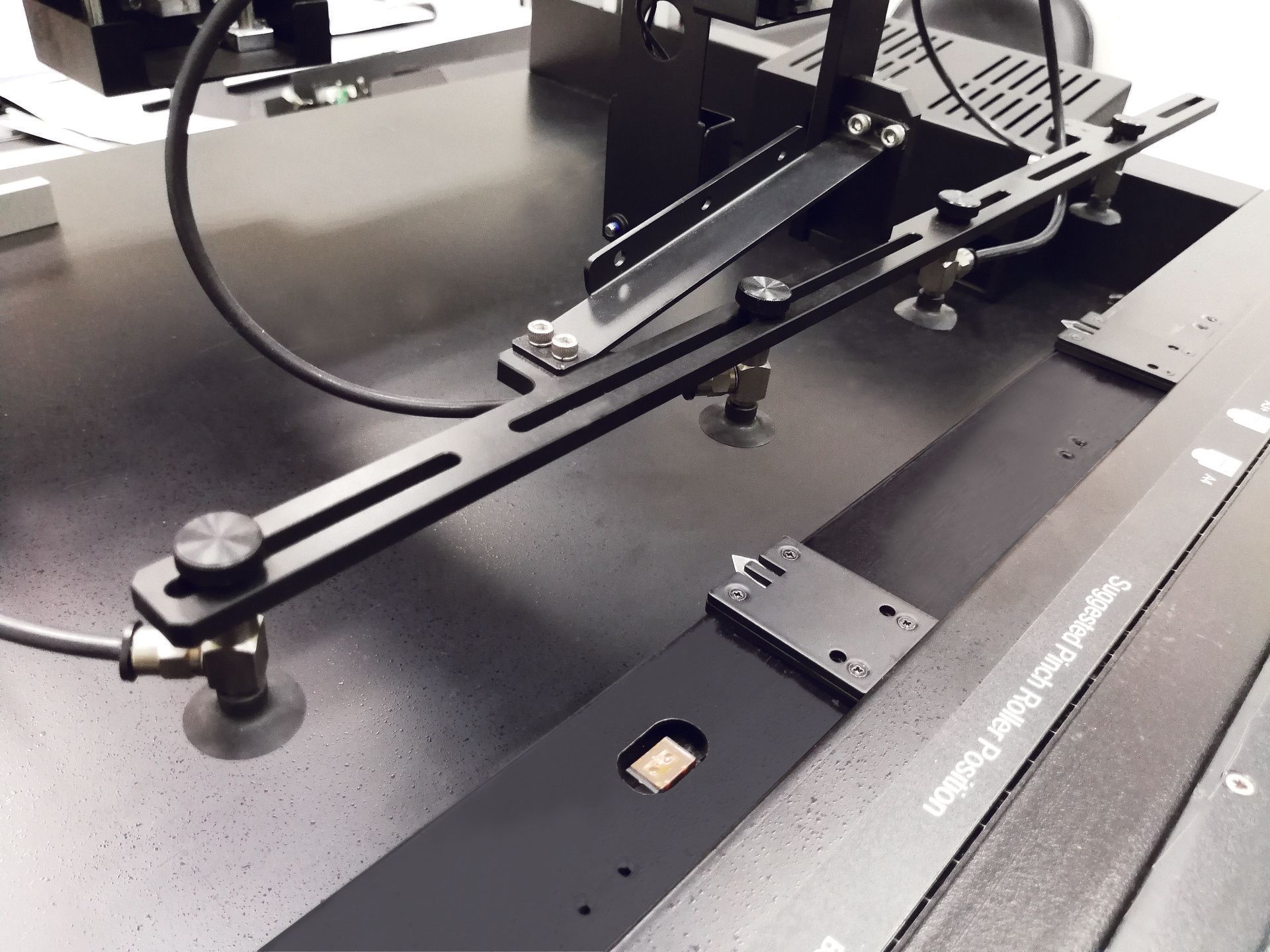

Suction Cup
Strong suction Cup can absorb media easily to load into cutter.
The Magnetic Media Separator
The special design of magnetic media separation mechanism prevents double feeding which ensure single sheet feeding each time as well as an uninterrupted workflow.
Media Stacking Up to 50mm (250 sheets)
Up to 50mm media stacking suggests great capacity tray and allows unattended operation.
Multiple Parameter Setting by 16 Different Colors
The new interface allows users to set up multiple parameters by using different color lines. This gives the operator greater flexibility when setting up a job.
Adjustable Media Collection Tray
With the angle of the rotating hinge, the gradient of the media tray can be adjusted to a proper position to collect the finished jobs.
OPTIONS
Work Table Assembly
Work table is specific designed for AFJ/AFR which enable to prevent machine from abnormal situation on uneven desktop. It also offers a convenience for user to operation machine without space limit.
Extension plate supports up to B2 size
A new set of extending plate can be attached to auto feeder and media collection tray that can extend working area to support media standard up to B2 size.
Cutting Pad
It prevents the blades from becoming blunt quickly.
Cutting Blades
Five different cutting blades for different material to achieve the desired cutting result
Metallic Blade Holder Φ2.5mm
Adjusting the blade length to fit your needs.

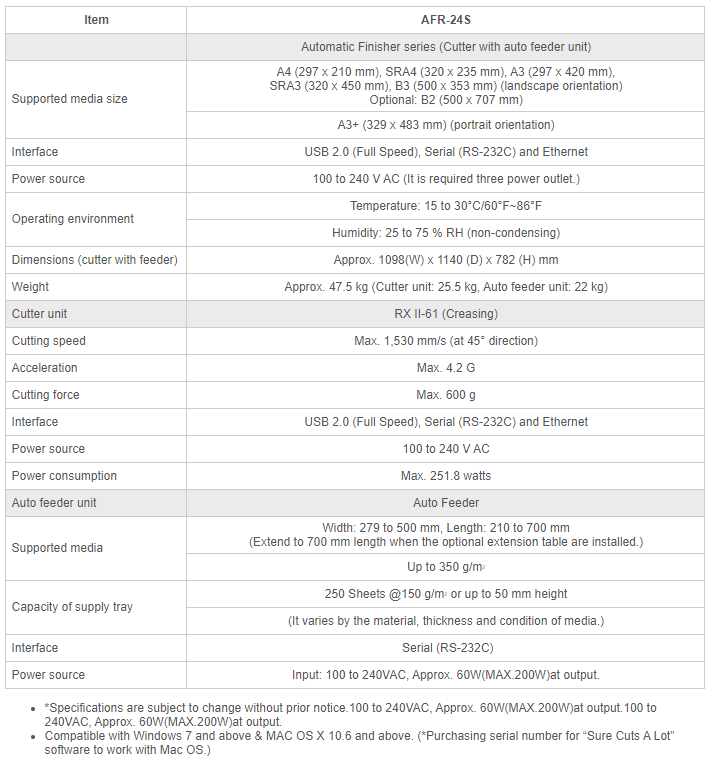

SPECIFICATIONS
