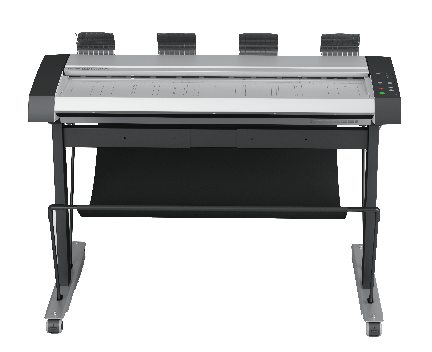

This series includes the world’s first 60-inch CCD scanner, but also comes in 36- and 42-inch widths. The size-flexibility, our Nextimage software and the unprecedented scan width gives you the flexibility to be smart and create a more efficient workflow.

With the HD Ultra X series, we have tried to reduce the total cost of ownership because we know how much it matters to you. We’ve used optimised LED lights, so you don’t have to think about replacing the lamps. Nor do you have to worry about maintenance to the same extent as other large format scanners.

Overview

The HD Ultra X series is the most efficient and flexible large format scanners on the market. Especially for high-pace environments with the need of scans in the highest possible quality. Therefore, it is great for copy shops which make a living of delivering a great product in short time. But really, it can do almost anything.

High quality lenses

Contex CCD scanners use premium Fujifilm lenses to bring you high-resolution images in the best quality available on the market today.

Instant-ON feature

Save valuable time with the ability to start scanning without the warm-up time.

True size detection

You don’t need to tell the scanner what to do. It detects the width without your help.

OTAC

With Optimized Thickness Adjustment Control, you can easily adjust the scanner to the originals just before scanning.

Speed adjustment

Three different speed levels at your fingertips on the touch panel makes it easy to adapt the scanner to your workflow and the original´s requirements.

USB 3.0 SuperSpeed xDTR3

We have adapted our xDTR technology to work with the USB 3.0 SuperSpeed protocol increasing its performance dramatically. It has the fastest data transfer rate of any scanner on the market.

Gigabit Ethernet xDTR2.5

Optimized for up to 100 MB per second. Up to 60% faster transfer rate than with xDTR2 thanks to new improved electronics.

Gbit throttling buffer control

1GB buffer eliminates scanner pausing. Maintain your scan speeds and meet those deadlines

Contex True Size Detection

HD Ultra X finds the paper width as it scans. No wasted time. No shoe shine just instant width detection. No more backwards and forwards movement of document while feeding it into the scanner. Just load and scan.

Static Free Touchless Glass System

Enjoy virtually scratch free glass plates thanks to the new design of the white background pressure plate in the HD Ultra X. The pressure point is offset of the scanning line helping the glass stay free from scratches. The Minimal-friction, floating transport design of glass plate with new quick-release magnetic scan glass system, makes replacement or cleaning of glass plate easier and faster than ever.

Contex Perfect Light

Contex Perfect Light in the HD Ultra X comes from engineers carefully selecting the very latest in light-emitting diode technology (LEDs) and combining this with specially developed diffusion filters.

FlexDoc

Combining automatic thickness adjustment control (ATAC), all wheel drive (AWD), automatic contour correction and a new paper pressure adjustment, Flex- Doc enables you to scan anything from newspaper-thin documents to posters on foam boards, gator boards and other bulky documents up to 0.6” thick.

FlexFeed

With removable, no-rewind paper return guides, right-side loading, a funnelshaped feeder, and a convenient new exit tray, FlexFeed takes the hassle out of scanning any document, even up to 60″ wide.

SnapSize

SnapSize makes it faster and easier to switch between different-sized documents by eliminating the need for manual software adjustments. Precision optical paper sensors register your document size and adjust the required settings automatically.

SmartShare

This allows all users in a workgroup to operate the scanner from their own computer via Ethernet.

AccuColor

To get the best results, your scanner and software should work with full 48-bit data. Where other scanners ignore some of this data, the HD Ultra is the world’s wide format scanner with true 48-bit color capture.

CCD

Contex uses All-Digital cameras with advanced point-of-origin capture and onboard digital conversion ensuring minimum noise and an extended dynamic range. The unique four-linear CCD technology, with a special panchromatic line, ensures that no colors are lost when scanning monochrome. Quality colormatched fluorescent lamps ensure the market’s highest standards for color correctness.

ALE

Accuracy Lens Enhancement (ALE) technology that electronically maintains 0.1% +- pixel precision across any two points of the scan line thus exceeding even the most rigid requirements in the industry today. Contex delivers a very high grade of precision stability in the scanned image.

SPECIFICATIONS

CCD

36" (914mm) - 42" (1067mm) - 60" (1524mm)

43.3" (1100mm) - 43.3" (1100mm) - 61.8" (1570mm)

36" model - 49.3 kg (109 lbs) LxWxH: 1360 mm (53.6’’) x 540 mm (21’’) x 279 mm (11’’)

42" model - 49.3 kg (109 lbs) LxWxH: 1360 mm (53.6’’) x 540 mm (21’’) x 279 mm (11’’)

60" model - 62.5 kg (173.8 lbs) / LxWxH: 1810 mm (71’’) x 540 mm (21’’) x 279 mm (11’’)

866 documents/hr (batch scanning E size RGB colour at 200 dpi)

0.1% +/- 1 pixel

8.9 - 17.8 ips

1200 dpi

9600 dpi

15 mm (0.6")

TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, multi-page PDF and others

Dropbox, Google Drive, Microsoft Sky Drive, Box.com

USB2, Ethernet

Adobe RGB / Device RGB / RAW RGB / sRGB

Yes

AutoCAD®, MicrostationTM, ArcGISTM and all other CAD, GIS and other image editing / storage applications

64-bit: Windows 10, 8, Windows 7 and Vista

Yes. low and high stand available
