ON-LINE FOLDERS

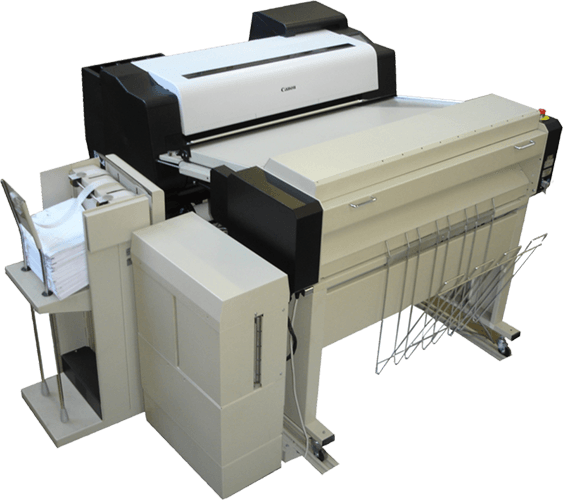

Online fan/fan+cross folder compatible with Canon iPF 8XX and HP DesignJet 4XXX / HP T7XXX series.
The necessity of colour CAD printing is increasing continuously and new plotters Canon iPF 8XX and HP 4XXX/HP T7XXX series are perfectly capable to satisfy the requirements of every specialist. Very often the stumbling block of production line consists in hand folding of drawings that besides the negative influence on daily volumes and final printing costs, increases considerably distribution time of executive projects.
The folding group RIG.804 solves every problem in a rapid way and with maximum quality, executing folding of your drawings coming out from a plotter in a completely automatic cycle. Finally it has become possible to print standard formats on the rolls of paper of 150m, without the necessity of subsequent finishing by hand.
Adding a wide format scanner, it is possible to make copies of any type of colour or b/w originals in a very simple way and with excellent qualitative results.
TECHNICAL FEATURES
- Folding group on line with plotter Canon iPF 8XX and HP 4XXX / HP T7XXX series colour ink-jets.
- Functions: fan and cross folding in one step (model RIG.804T).
- Storage on vertical collector included
- Max width of paper sheet: 107 cm. (42”)
- Length: up to 3 m fan and cross folding.
- Digital technology with the following folding programs:
A. Programmed folding – first and last folding perfectly equal in width
B. Filing folding with border of 20 mm (configurable for other widths) for files storage
C. Parallel mode with random width of last fold
D. Cross-fold mode (max. A0) in one step adjustable from 280 to 310 mm
- Adjustable folds: 175÷215 mm with 1 mm steps
- Possibility to introduce paper sheet manually
- Very compact group for easy collocation.
The R807 is a compact on line folding system that offers fully-featured folding, collation and stacking. The compact design saves much valuable floor space without sacrificing features. it is supplied with all the necessary accessories to obtain folding in final format A4 of all your drawings.
The R807 Series can be easily connected to a wide range of laser copiers/plotters present on the market with the printing speed up to 14,4 m/min.
Models available:
RIG.807 - for print-engine up to 6 m/min.
RIG.807 plus - for print-engine up to 10 m/min.
RIG.807 plus.8 - for K8000/9000 up to 14,4 m/min
RIG.807 includes as standard:
Fan folder
Cross folder
Folded copies stacker on the top
Vertical tray, on the rear, for unfolded prints
Options
Motorized flat stacker to collect unfolded prints up to 150 A0.
Remote controller to select folding programs from copier.
Technical Features
- Fan and cross folding in one step.
- Max width of paper: 91,4 cm.
- Max length: up to 3 meters fan and cross folding; over 3 meters only fan folding.
- Digital technology with the following programs:
- Programmed folding - first and last folding perfectly equal in width.
- Filing folding with border of 20 mm (configurable for other width) for files storage.
- Cross fold mode in format A4 in one step
- Fan fold size: selectable from 175 mm to 215 mm with 1 mm step.
- Cross fold size: selectable from 280 mm to 310 mm with 1 mm step.
- Speed of folding is sinchronyzed with the printing speed of the connected plotter.
- Folded copies stacker (for up to 180 A0) on the top of the machine on the horizontal belt.
- Vertical tray, on the rear, for unfolded prints.
- High quality of folding, thanks to the modern digital technology applied.
- Model with very reduced dimensions: 151(W) x 116(L) x 110(H) cm – 275 Kg.
OFF-LINE FOLDERS

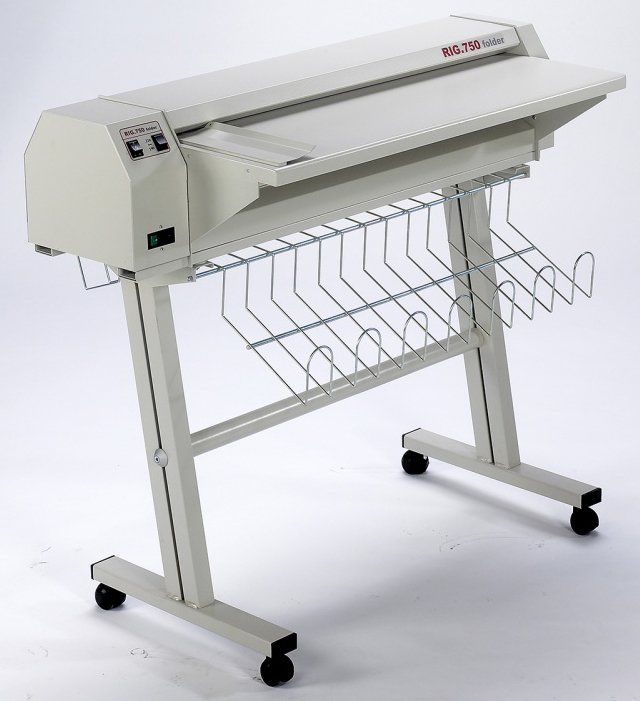

The folding of wide format drawings often represents an unpleasant operation to be executed manually and requires much time producing bad results. But low volumes of work have not justified till now the purchase of an automatic folder for its high cost. Not any more!
Presenting a folding machine for A0 format drawings at an impressively low price. Rigoli s.r.l. projected a completely automatic folder with an absolutely particular ratio of quality to price. Now technical offices and single specialists can avoid a boring problem of folding of their precious drawings coming out of ink-jet plotters or photocopiers of wide format. With only manual introduction of paper, RIG.750 will fold your drawings at speed of 6 A0 per minute with highest quality.
Technical Features
- Simple and efficient folding, it is ideal for low volumes of folding.
- Digital technology with two programmed folding sizes: Parallel folding at 190mm (7,5”), with random final. Parallel folding at 210mm (8,27”), with random final
- Max width of paper sheet: 92cm (36”)
- Max length of paper sheet: 2,5m (100”) approx.
- Back or front copy ejection depending on length of paper sheets
- Speed: 6 A0 per minute.
- Precise and extremely silent functioning
- Dimensions: cm 117(W) x 94(L) x 103(H), with closed table cm 71 (L)
- Net weight 80kg.

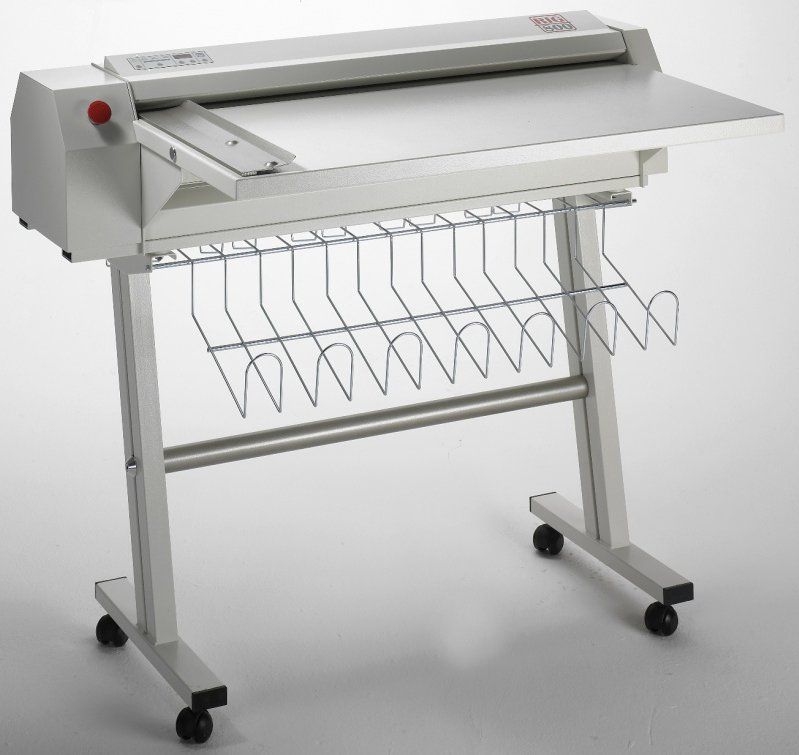

It is an automatic fan folding unit characterized by a surprising combination of quality and speed with a very interesting price. The R800 represents the ideal solution of all your problems with folding in a simple and professional way. With limited footprints, it produces impeccable results of your drawings coming out of large copiers and plotters.
Technical Features
- Automatic folding machine for paper sheets 92 cm wide (36') and unlimited length, in 3 meters multiple-sections.
- Folds any type of drawings including ink-jet.
- Working without any noise, it may be installed anywhere in your office, thanks also to the very limited dimensions 117 x 100 cm.
- A wide range of folding options at truly impressive speed, 7 A0 formats per minute.
- Multi-programmable with Fold width adjustable 170-220 mm in 1 mm steps.
- Automatic measurement of the length of any drawing during folding.
- Modular construction for installation on your table or with strong stand.
The RIG.801 is a high-performance automatic folding unit from Rigoli s.r.l. Digital technology offers a wide range of folding options at truly impressive speed. The RIG.801 is the ideal solution to satisfy the requirements of every Copy Centre. The RIG.801 is designed and constructed for intensive professional use providing maximum reliability and efficiency also with high volumes of large format drawings folding.
B) Filing mode with projecting border of 20 mm (configurable for other widths);
C) Parallel mode with width of last fold unspecified;
D) Cross-fold mode (max. A0) with second-pass fold adjustable from 280 to 310 mm;
Technical Features
- It folds sheets up to 107 cm wide and unlimited length in 4-metre sections.
- Real (not ‘peak’) throughput of about 17 meters per minute. Negligible pause between each fold.
- Digital technology with four programmed folding modes:
B) Filing mode with projecting border of 20 mm (configurable for other widths);
C) Parallel mode with width of last fold unspecified;
D) Cross-fold mode (max. A0) with second-pass fold adjustable from 280 to 310 mm;
- Width of fold adjustable in all modes from 175 to 215 mm in one-millimetre steps.
- Automatic measurement of copy length simplifies billing for service providers.
- Sheets should be aligned to the left side before insertion.
- Back or front copy ejection depending on folding mode chosen.
- Special fitting for smooth operation with rolled-up sheets.
- Silent operation.
- Sturdy floor stand with castors.
- Small footprint - 134 X 107 X 104 (h) cm.
- Net weight 120 kg.
A complete folding group, for execution of fan folding and of the following cross folding in one step and with hand introduction of copies. It is the ideal solution for Service Centres, because it is capable to elaborate printing results coming out of more plotters, improving greatly the potential of the centre and reducing at the same time production costs and especially working time at 50%.
Technical Features
- Speed up to 17 meters per minute.
- Length: fan and cross fold: max 2,5 m. Only fan fold: unlimited in 4 meters sections.
- Width up to 107 cm.
- Digital technology with four programmed folding modes:
B) Filing folding with border of20 mm (configurable for other widths) for files storage;
C) Parallel mode with random width of last fold;
D) Cross-fold mode in one step adjustable from 280 mm to 310 mm.
- Fan fold adjustable from 170 mm till 210mm.
- Cross fold adjustable.
- Optional: vertical stacker extra capacious 200 A0.
